Panasonic
SKU: PAN-VTX800
UPC: 6 28507 10006 3

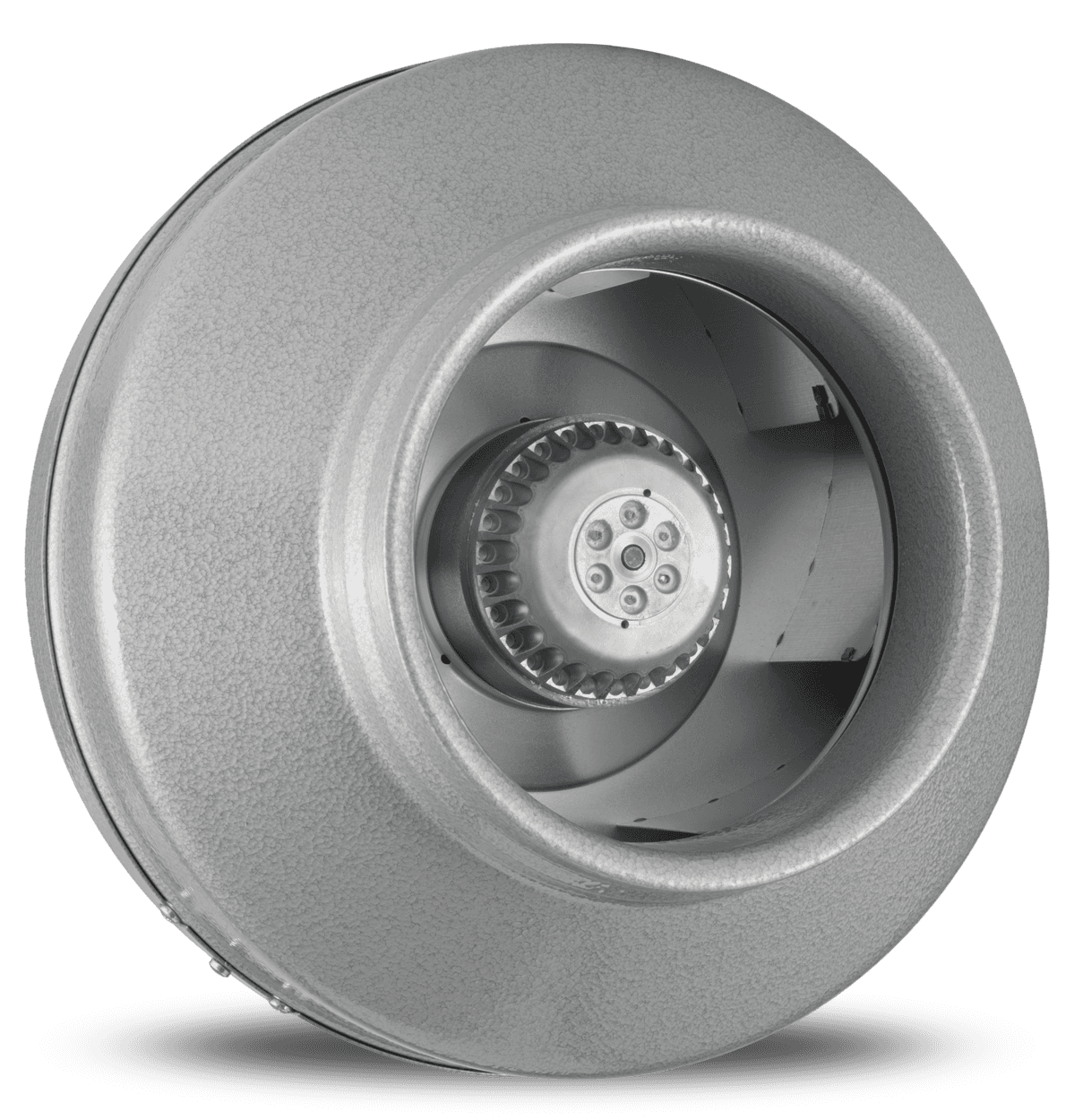

Atmosphere Corded Centrifugal In-line Fan, 681 CFM at 0.2 s.p., for high static pressure applications and long duct runs, 8" duct, backdraft damper not included, speed controller available separately
| Specification | Value |
|---|---|
| Duct Size (in) | 8" |
| Housing | External rotor motor with automatic reset thermal overload protection |
| Include Control | False |
| Life | AMCA Air Listed (Pending AMCA certification) |
| Motor Warranty | 10 year manufacturers warranty |
| Brand | Panasonic |
| Model Number | VTX800 |
| PHASE (Ø) | 1 |
| Rated Frequency (Hz) | 60 |
| CFM | 681 |
| RPM | 3060 |
| UPC | 6 28507 10006 3 |
| Max Amperage | 2.29 |
| Watts | 260 |
| Volts (V) | 120 |
| Free Shipping | No |
| Model | VTX |
