PRO1
SKU: PRO1-DT-T755S
UPC: 095247201600

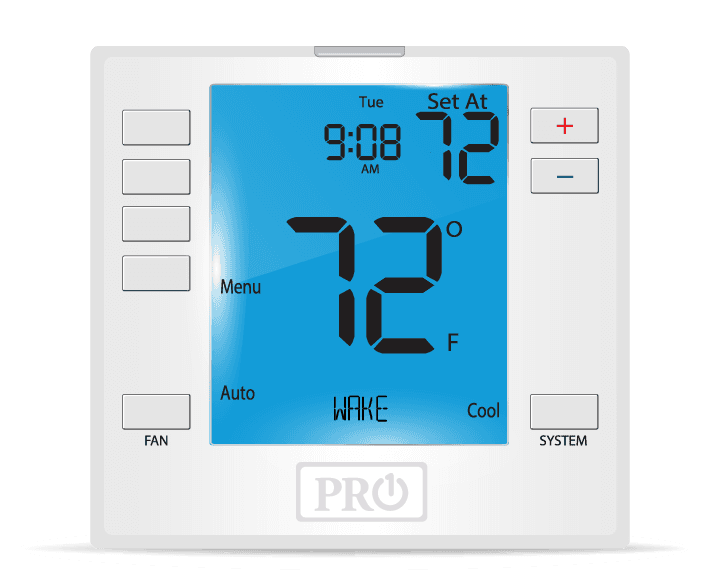

T700 Platform: 7 day, 5/1/1, or 0 day programmable, universal, 4H/2C with 7 sq. in. display. Compatible with R251S (wired indoor sensor), or R250S (outdoor/slab sensors)
| Specification | Value |
|---|---|
| Include Control | False |
| Brand | PRO1 |
| Model Number | T755S |
| Warranty Information | 5 year warranty |
| UPC | 095247201600 |
| CONTROL RANGE | 44˚F to 90˚F (7˚C to 32˚C) |
| COOL SWING | Adjustable from 0.2˚F to 2.0˚F |
| DIMENSIONS | 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D) |
| DISPLAY ACCURACY | +/- 1˚F |
| DISPLAY RANGE | 41˚F to 95˚F (5˚C to 35˚C) |
| HEAT SWING | Adjustable from 0.2˚F to 2.0˚F |
| LOAD RATING | 1 amp per terminal, 1.5 amp maximum all terminals combined |
| MODEL FEATURES | • 16 Remote sensor capable • 7 sq. inch display • Blue backlight • Glow in the dark light button • Easy access battery compartment • Universal subbase • Simple private label badge system • Setpoint limits • Electric or gas con gurable • Mounts on wall or junction box • Auto-changeover • 5 minute compressor delay protection (selectable on or off) • 5 Year Warranty • Customizable staging logic • Separate heating and cooling swing (cycle rate) adjustments • Battery or 24V power • Room temperature calibration adjustments • Easy wire color coded terminal blocks • Set dual fuel balance points (requires R250S) • Compatible with indoor remote sensors (R251S) • Compatible with outdoor/slab remote sensors (R250S) |
| MOUNTING | Wall or Junction Box |
| OPERATING HUMIDITY | 90% non-condensing maximum |
| PROGRAMMABILITY | 7 Day, 5/1/1 or Non-Programmable |
| SYSTEM SWITCH | Cool - Off - Heat - Auto |
| TERMINALS | Rc, Rh, G, Y, Y2, C, O, B, W/E, W2, S1, S2 |
| Free Shipping | No |
| Application | Up to 2 Heat 2 Cool Conventional, 3 Heat 2 Cool Heat Pump |
| Model | DT |
