PRO1
SKU: PRO1-WL-T731W
UPC: 095247201556

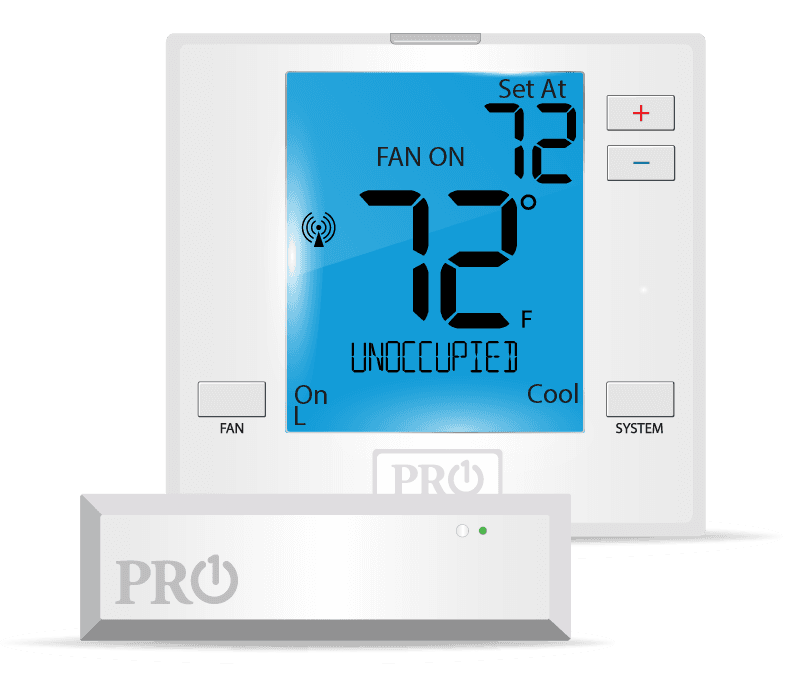

T700 Platform: Wireless PTAC thermostat, non-programmable, heat pump/conventional, 2H/1C with 7 sq. in display (includes wireless base module).
| Specification | Value |
|---|---|
| Include Control | False |
| Brand | PRO1 |
| Model Number | T731W |
| Warranty Information | 5 year warranty |
| UPC | 095247201556 |
| CONTROL RANGE | 44˚F to 90˚F (7˚C to 32˚C) |
| COOL SWING | Adjustable from 0.2˚F to 2.0˚F |
| DIMENSIONS | 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D) |
| DISPLAY ACCURACY | +/- 1˚F |
| DISPLAY RANGE | 41˚F to 95˚F (5˚C to 35˚C) |
| HEAT SWING | Adjustable from 0.2˚F to 2.0˚F |
| LOAD RATING | 1 amp per terminal, 1.5 amp maximum all terminals combined |
| MODEL FEATURES | • 7 sq. inch display • Blue backlight • Glow in the dark light button • Easy access battery compartment • Universal subbase • Simple private label badge system • Setpoint limits • Electric or gas con gurable • Mounts on wall or junction box • Auto-changeover • 5 Year Warranty • 5 minute compressor delay protection (selectable on or off) • Separate heating and cooling swing (cycle rate) adjustments • Battery or 24V power • Room temperature calibration adjustments • Easy wire color coded terminal blocks • Two and three speed fan options |
| MOUNTING | Wall or Junction Box |
| OPERATING AMBIENT | 32°F to +105°F (0°C to +41°C) |
| OPERATING HUMIDITY | 90% non-condensing maximum |
| POWER SOURCE | 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries |
| PROGRAMMABILITY | Non-Programmable |
| SYSTEM SWITCH | Cool - Off - Heat |
| TERMINALS | R, C, Y, W, O, B, GH, GL |
| Free Shipping | No |
| Application | 1 Heat 1 Cool Conventional, 2 Heat 1 Cool Heat Pump |
| Model | WL |
